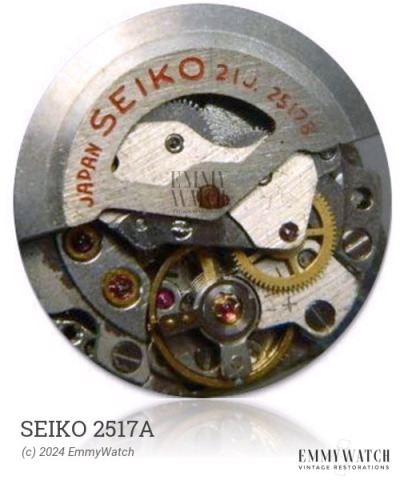

Seiko 2517A
Ligne: 11.5'''
Jewels: 17/21/25
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1950
Diameter: 26 mm
Height: 5.75 mm
Hands: 1.30 x 0.90 x 0.22 / 0.22 mm
The Seiko 2517A watch movement is a detached manual wind movement used in watches produced around the year 1950. It shares similarities with the A. Schild 1523 movement, although the precise differences are not known. The Seiko 2517A movement features several functions, including automatic winding, sweep seconds, and a power reserve display with a capacity of approximately 36 hours.
The Seiko 2517A features the following functions:
- Automatic Winding
- Power Reserve Display: 36h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 280 x 8.5 mm | GR3952X | Auto | Buy mainspring |
| 1.45 x 0.100 x 250 x 8.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
