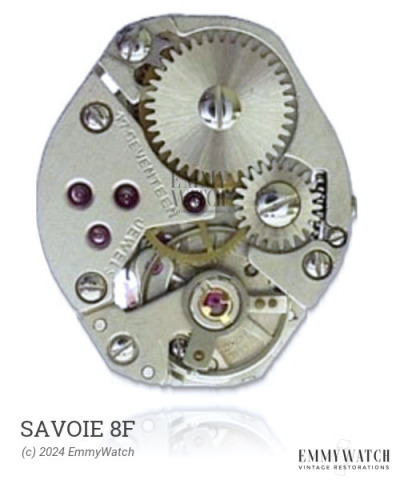

Savoie 8F
(Lorsa)
Ligne: 17.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 39.7 mm
Height: 4.2 mm
Hands: 2.00 x 1.15 / 0.27 mm
The Savoie 8F is an open face calibre movement characterized by varying bridge shapes and a left-handed ratchet-wheel screw. It is likely exclusively used by Rotary watches as it has not been listed elsewhere. The movement features stem winding and setting, a sub-second function, and was commonly used around the period of 1940.
The Savoie 8F features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2399 | Ordinary/None | Buy staff |
| 3263 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.180 x 420 x 14.0 mm | GR3405 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
