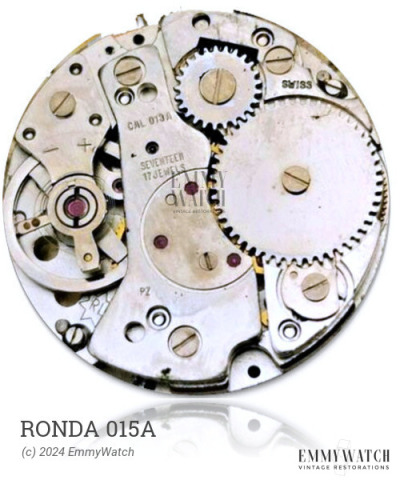

Ronda 015A
Ligne: 12'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 27.1 mm
Height: 5.5 mm
Hands: 1.50 x 0.80 x 0.21 mm
The Ronda 015A watch movement is a manual-wind chronograph movement with a 60-second and 30-minute counter, featuring a pillar wheel mechanism. It also includes a sub-second function, enabling accurate tracking of seconds. This movement was produced around the year 1945.
The Ronda 015A features the following functions:
- Chronograph Movement
- Manual-wind chronograph, 60s, 30min, pillar wheel
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 350 x 10.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.110 x 320 x 9.5 mm | GR3699 | Manual | Buy mainspring |
| 1.40 x 0.110 x 300 x 9.0 mm | GR3698 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
