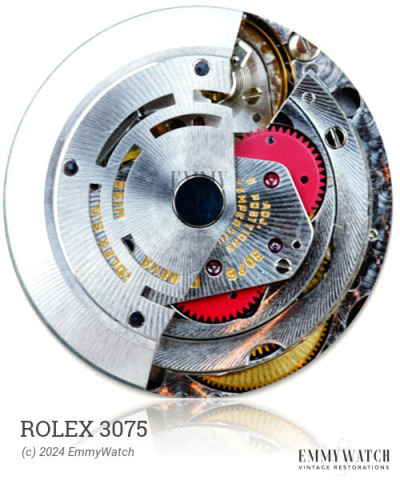

Rolex 3075
Ligne: 11.5'''
Jewels: 17/23
Lift Angle: 46°
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1969-1976
Diameter: 26 mm
Height: 4.55 mm
Hands: 1.40 x 0.85 x 0.20 mm
The Rolex 3075 watch movement was produced between 1969 and 1976. It features an indirectly driven minute hand, which allows for a larger balance and a lower profile. During its production period, the rotor was modified. Additionally, this movement includes the following functions: automatic winding, sweep seconds hand, and a date function that can be set by changing the time between 20:15 and 24:00 hours.
The Rolex 3075 features the following functions:
- Automatic Winding
- Date: set by changing 20:15-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.115 x 320 x 10.0 mm | GR2644X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
