Rolex 170
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1917-1933
Diameter: 25.4 mm
Height: 3.85 mm
Hands: 1.12 x 0.64 / 0.18 mm

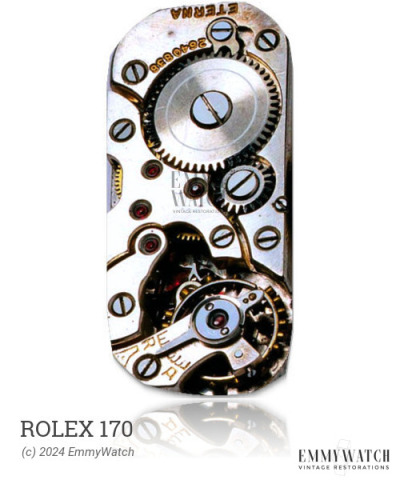

The Rolex 170 watch movement, manufactured between 1917 and 1933, produced a total of 344,000 units. It features a hunter calibre, model 1, and is equipped with a bimetallic screw balance and a Breguet hairspring. This American-made movement is a stem wind and set mechanism with a sub second function.
The Rolex 170 features the following functions:
- American Made
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING 8-8-16.5 DBH | MS-JA120 | Buy part |
