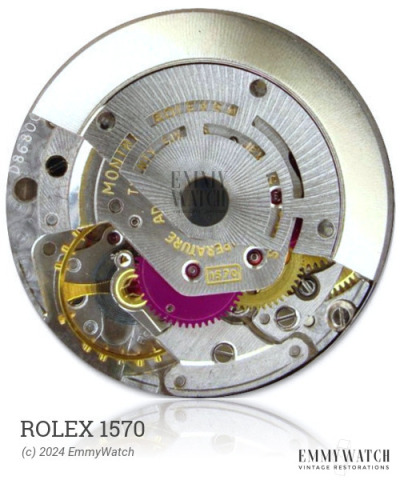

Rolex 1570
Ligne: 11.5'''
Jewels: 22/25
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1952-1956
Diameter: 26 mm
Height: 6.5 mm
Hands: 1.60 x 0.95 x 0.21 mm
The Rolex 1570 watch movement, produced from 1952 to 1956, was the first automatic movement developed by Durowe. Its wheels were made of beryllium bronze. This movement included the following functions: automatic winding and sweep seconds.
The Rolex 1570 features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5472 | Ordinary/None | Buy staff |
| 3401 | Durobloc | Buy staff |
| 3401 | Duroswing | Buy staff |
| 3402 | Incabloc | Buy staff |
| 5472 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 260 x 9.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
