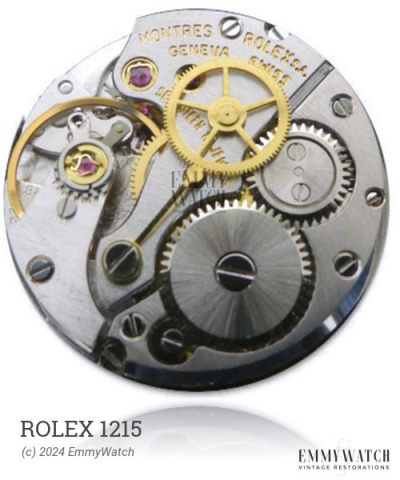

Rolex 1215
Ligne: 12.5'''
Jewels: 17/21
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 28.3 mm
Height: 5.7 mm
Hands: 2.10 x 1.50 x 0.90 x 0.22 mm
Base: Venus 230
The Rolex 1215 watch movement is equipped with a common barrel for both the watch and alarm functions and features an indicator aperture for the alarm. The specific differences between the Venus 230 and 231 movements are not disclosed. The Rolex 1215 movement offers manual-winding capabilities for the alarm function, as well as sweep seconds for precise timekeeping. This movement is known to have been used during approximately 1955.
The Rolex 1215 features the following functions:
- Alarm Complication
- Manual-wind alarm
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.130 x 380 x 12.0 mm | GR4566 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
