Roamer 520
Ligne: 8.75'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 19.7 mm
Height: 3.3 mm
Hands: 1.20 x 0.60 mm

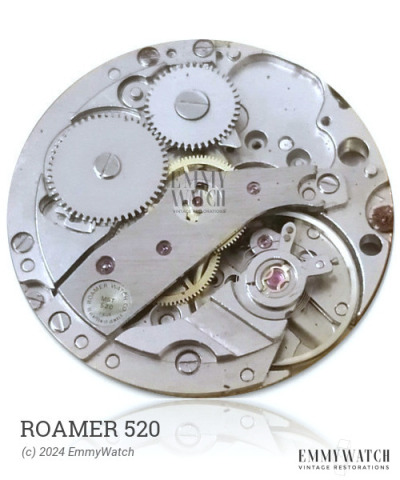

The Roamer 520 watch movement is similar to the 170 movement, but slightly thinner. The specific differences between the 189, 197, 202, and 214 movements are unknown. The Roamer 520 movement is a manual wind movement with a sub second function. It was used during the period of approximately 1945.
The Roamer 520 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1028 | Ordinary/None | Buy staff |
| 2665 | Incabloc | Buy staff |
| 1065 | Shock Resist | Buy staff |
| 3203 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.090 x 260 x 8.0 mm | GR3627 | Manual | Buy mainspring |
| 1.40 x 0.085 x 260 x 7.5 mm | GR3615 | Manual | Buy mainspring |
| 1.40 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
