Revue 89
Ligne: 19'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1902
Diameter: 43.1 mm
Height: 6.6 mm
Hands: 1.80 x 1.00 / 0.26 mm

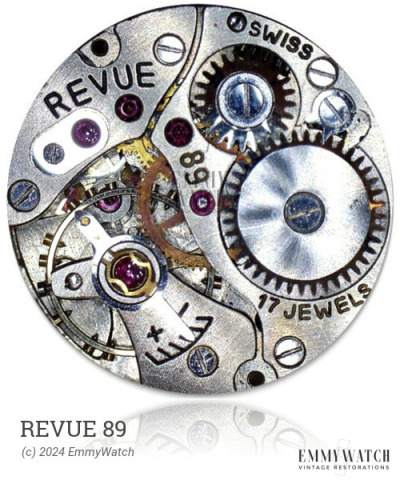

The Revue 89 watch movement is an open face or hunter calibre with a bimetallic screw balance and a Breguet hairspring. It features stem winding and pin setting, as well as a sub-second function. This movement was widely used around the year 1902.
The Revue 89 features the following functions:
- Stem wind and pin set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.20 x 0.220 x 500 x 17.0 mm | GR6304T | T | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
