Revue 77
Ligne: 12'''
Jewels: 1/17
Power Reserve: 38 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1975
Diameter: 27 mm
Hands: 0.20 mm

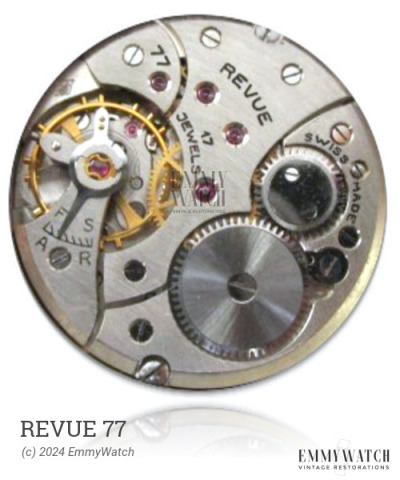

The Revue 77 is a mechanical watch movement that features a pin-lever escapement and a stem mechanism without a setting-lever spring. In some late samples, the hairspring terminal is glued. It is worth noting that the train and hand gear are driven separately by the barrel in a peculiar manner. This movement offers various functions, including manual wind, sweep seconds, and a digital display showing the minute and jumping hour. The Revue 77 utilizes a pin lever, and it was commonly used around 1975.
The Revue 77 features the following functions:
- Digital display: minute, jumping hour
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.120 x 320 x 9.5 mm | GR3728 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
