Revue 30
Ligne: 5.75 x 8.5'''
Jewels: 15/16
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Size: 12.8 x 19.6 mm
Height: 3.8 mm
Hands: 1.10 x 0.60 mm

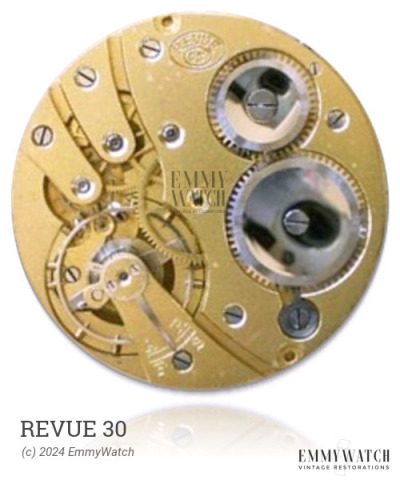

The Revue 30 watch movement features a patented space-saving train design in two layers, offering a compact and efficient mechanism. It also offers the option of a bimetallic screw balance. The specific differences between the 80, 86, 93, 113, 114, 116, 117, 128, 133, 134, 144, 146, 148, 153, 157, 167, and 177 versions of the movement are not known. The Revue 30 movement is a manual wind movement that was commonly used around the period of ~1930.
The Revue 30 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.080 x 260 x 7.5 mm | GR3923 | Manual | Buy mainspring |
| 1.45 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
