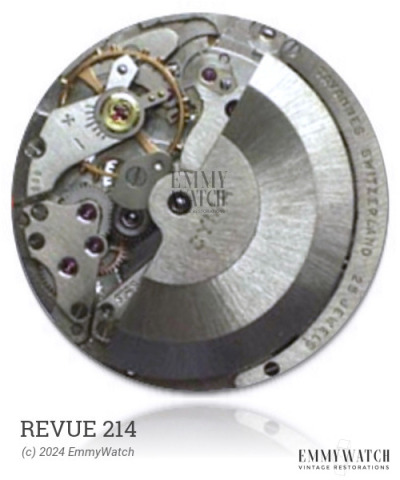

Revue 214
Ligne: 11.5'''
Jewels: 25
Power Reserve: 38 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1975
Diameter: 26 mm
Height: 4.6 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Revue 214 watch movement is a detached manual wind movement with an indirectly driven minute hand feature, which allows for a relatively large balance and low profile design. It belongs to the Type VS category, characterized by a single-part rotor that is 0.6mm higher. This movement includes several functions such as automatic winding, sweep seconds, adjustable stud holder, and shock protection. It was in use around 1975.
The Revue 214 features the following functions:
- Adjustable Stud Holder
- Automatic Winding
- Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.120 x 340 x 10.5 mm | GR2653X | Auto | Buy mainspring |
| 1.10 x 0.130 x 300 x 10.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
