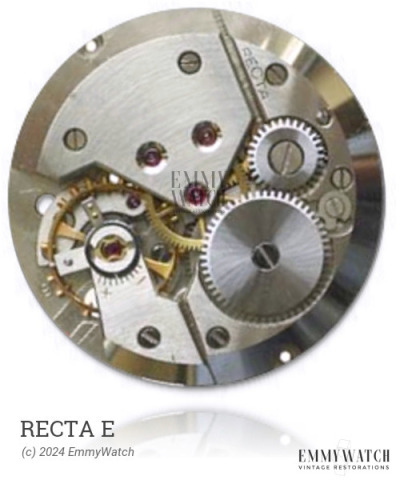

Recta E
Ligne: 13.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 30.45 mm
Height: 3.85 mm
Hands: 1.40 x 0.80 / 0.22 mm
The Recta E watch movement is a manual wind movement that features a sub second function and is available in both sweep seconds and non-sweep seconds variations. It was commonly used around the period of 1945. However, there are no known differences between the Recta E and the ETA 964 watch movements.
The Recta E features the following functions:
- Manual Winding
- Sub Second
- Sweep seconds and non-sweep seconds variations
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.110 x 280 x 8.5 mm | GR4513 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
