Record 650
Ligne: 10.5'''
Jewels: 17
Power Reserve: 31 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 23.7 mm
Height: 4.3 mm
Hands: 1.40 x 0.80 x 0.16 mm
Base: Osco 65

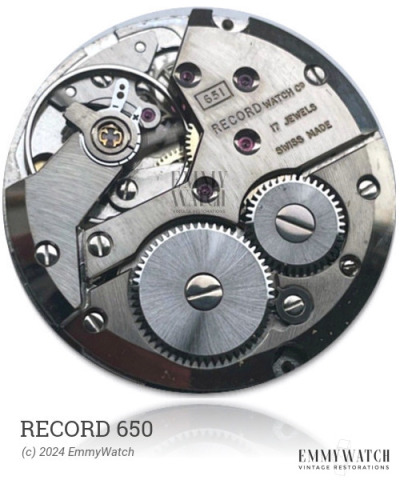

The Record 650 watch movement features a ratchet on the dial side and a crown mechanism with a rocker bar. It is a manual wind movement with a sub second function. The Record 650 movement was used during the period around 1960.
The Record 650 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
