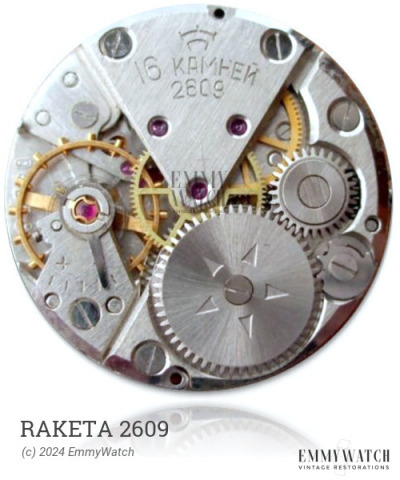

Raketa 2609
Ligne: 12'''
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 27.8 mm
Height: 4.6 mm
Hands: 1.80 x 1.10 x 0.20 / 0.65 x 0.65 mm
The Raketa 2609 watch movement is equipped with a pin-lever escapement and an indirect minute hand friction clutch on the barrel. It is a manual wind movement with a sweep second hand and belongs to the Pin Lever category. This movement was introduced around 1965.
The Raketa 2609 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.110 x 390 x 11.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
