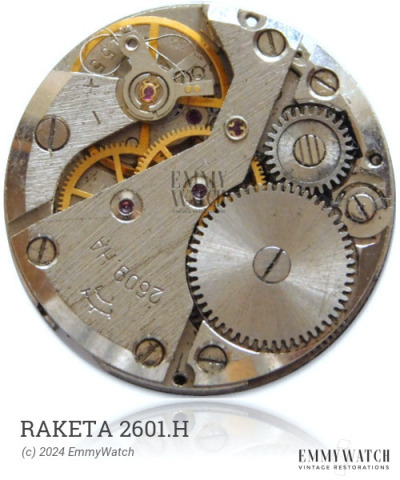

Raketa 2601.H
Ligne: 12.5'''
Jewels: 18
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1954-1961
Diameter: 28 mm
Height: 5.3 mm
Hands: 1.55 x 1.05 x 0.22 mm
Base: Urofa 61
The Raketa 2601.H watch movement, produced from 1954 to 1961 with a total of 86,416 units, features a manual wind mechanism and a sweep second function. It incorporates Incabloc Shock Protection for improved durability. The 1Q models of this movement are equipped with a screw balance and a Nivarox-1 hairspring.
The Raketa 2601.H features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.120 x 360 x 10.5 mm | GR4539 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CROWN WHEEL | 420/1141 | Buy part | |
| RATCHET WHEEL | 415/1143 | Buy part | |
| STAFF, INCA | 100/2622 | Buy part | |
| STEM | 200/1344F | Buy part |
