Puw 73
Ligne: 7.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 17.5 mm
Height: 4.0 mm
Hands: 1.20 x 0.70 x 0.20 mm

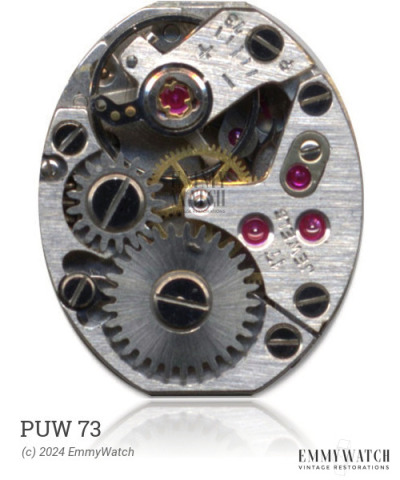

The Puw 73 watch movement features Girocap and Kif-Duofix combined settings for the escapement wheel. It has a manual winding mechanism, sweep seconds function, and an adjustable stud holder. The movement is equipped with Incabloc Shock Protection and includes a sweep seconds hand. It was in use around the 1970s.
The Puw 73 features the following functions:
- Adjustable Stud Holder
- Incabloc Shock Protection
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5466 | Ordinary/None | Buy staff |
| 5466 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 240 x 7.0 mm | GR3202 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
