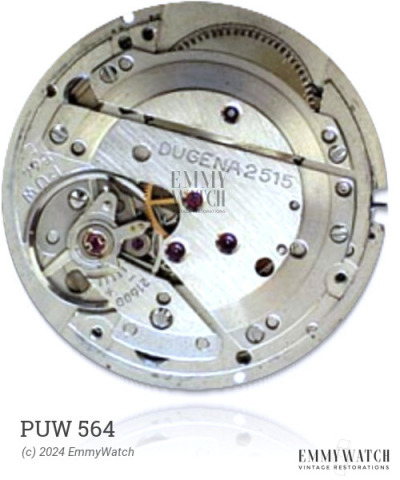

Puw 564
Ligne: 13'''
Jewels: 17
Power Reserve: 46 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: ~1972
Diameter: 29.5 mm
Height: 3.15 mm
Hands: 1.50 x 0.90 x 0.20 mm
Base: A. Schild 1838
The Puw 564 is a manual wind watch movement, particularly designed for the Ocean Star series, featuring a lever that allows for stem release from the dial side. This movement shares technical details with the Mido 1147OC. Additionally, it encompasses various functions, including a sweep second hand, a date indicator that can be quickly set by repeated pushing of the crown, and it was predominantly used during the approximate period of 1972.
The Puw 564 features the following functions:
- Date: quickset by repeated pushing the crown
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.120 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
