Puw 49
Ligne: 9 x 10.25'''
Jewels: 17
Lift Angle: 48°
Power Reserve: 49 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: ~1966
Size: 20.05 x 23.1 mm
Height: 3.5 mm
Hands: 1.32 x 0.72 / 0.15 mm

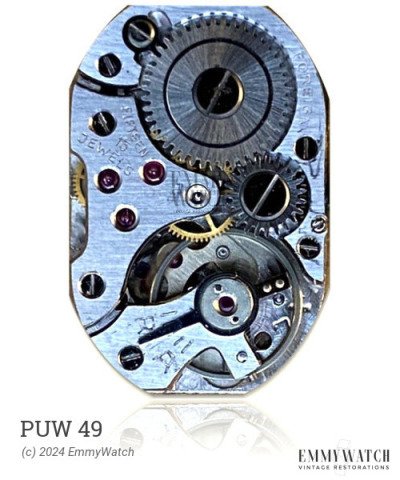

The Puw 49 watch movement is a manual wind, sub second, mechanical movement that was in use around 1966.
The Puw 49 features the following functions:
- Manual Winding
- Mechanical Movement
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.105 x 340 x 9.5 mm | GR4393T | T | Buy mainspring |
| 1.50 x 0.090 x 360 x 10.0 mm | GR4104T | T | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
