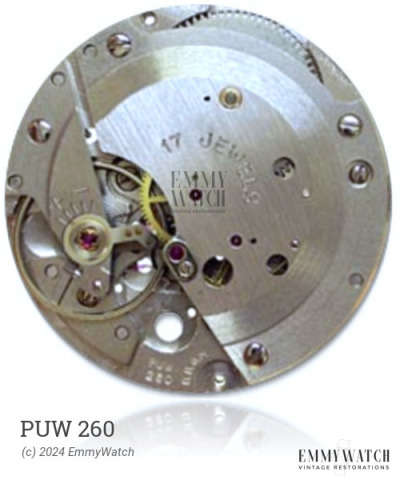

Puw 260
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 23.35 mm
Height: 3.5 mm
Hands: 1.40 x 0.80 / 0.22 mm
The Puw 260 watch movement is a manually-wound mechanical movement that features a sub-second complication. It is part of a range of movements including the 900, 902, 903, 927-929, 938, 941, and 968, where the differences are primarily attributed to different bridge designs. The Puw 260 movement was commonly used in watches from approximately the 1950s.
The Puw 260 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.55 x 0.105 x 280 x 9.0 mm | GR4390 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
