Puw 1564T
Ligne: 11.5'''
Jewels: 17/21/25/30
Lift Angle: 52°
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Automatic
Diameter: 26.3 mm
Height: 6.3 mm
Hands: 1.50 x 0.90 x 0.20 mm

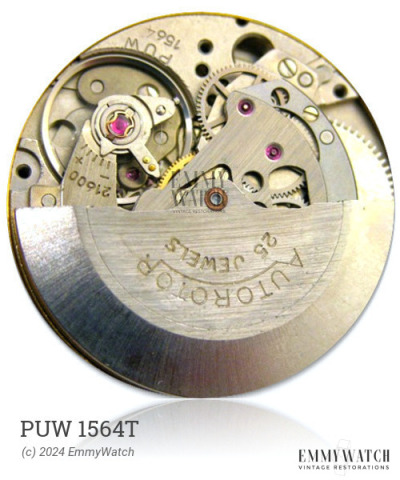

The Puw 1564T watch movement is an automatic mechanical movement that features sweep seconds, day function with +/-24h setting, and date function set by changing the time from 21:15 to 24h. It also includes a sweep seconds hand, automatic winding, and a calendar feature.
The Puw 1564T features the following functions:
- Automatic Winding
- Calendar
- Date: set by changing 21:15-24h
- Day: set by +/-24h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.110 x 320 x 10.0 mm | GR3983X | Auto | Buy mainspring |
| 1.40 x 0.110 x 350 x 10.5 mm | Auto | Buy mainspring | |
| 1.40 x 0.110 x 340 x 10.0 mm | GR3700X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
