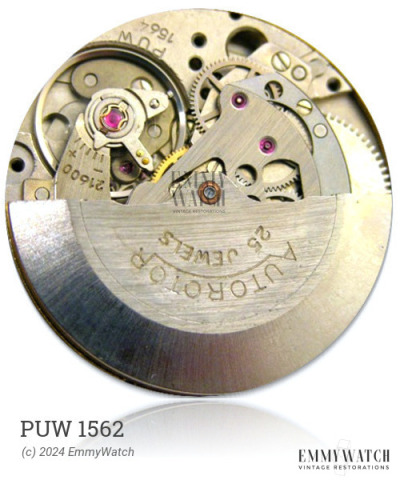

Puw 1562
Ligne: 12.5'''
Jewels: 17
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1948-1955
Diameter: 28.2 mm
Height: 5.6 mm
Hands: 1.32 x 0.80 x 0.20 mm
The Puw 1562 watch movement was produced between the years 1948 and 1955. It is similar to the 138SS movement, with no known differences between the two. The 139 movement features automatic (bumper) winding and sweep second functionality.
The Puw 1562 features the following functions:
- Automatic (bumper)
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3081 | Ordinary/None | Buy staff |
| 4147 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.085 x 260 x 8.0 mm | GR3486X | Auto | Buy mainspring |
| 1.35 x 0.090 x 250 x 8.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
