Phenix 834
Ligne: 13'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 29.4 mm
Height: 3.2 mm
Hands: 1.50 x 0.80 / 0.21 mm

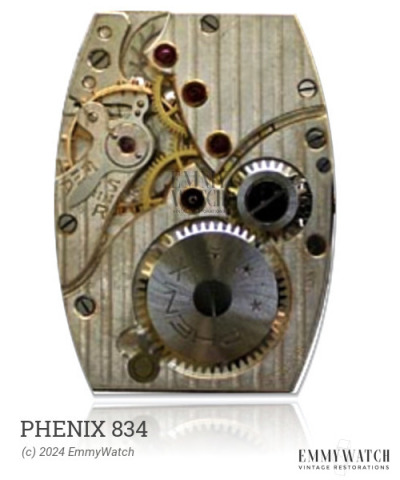

The Phenix 834 watch movement, also known as the Wehrmachtswerk or Germany Military Movement, shares similarities with other A. Schild movements, such as the 1560, 1561, 1587, 1589, 1594, 1606, 1609, 1616, 1617, 1623, 1648, and 1697, although specific differences are not known. This manual wind movement features a sub-second function and was commonly used around the 1960s.
The Phenix 834 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.135 x 340 x 11.0 mm | GR3758 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
