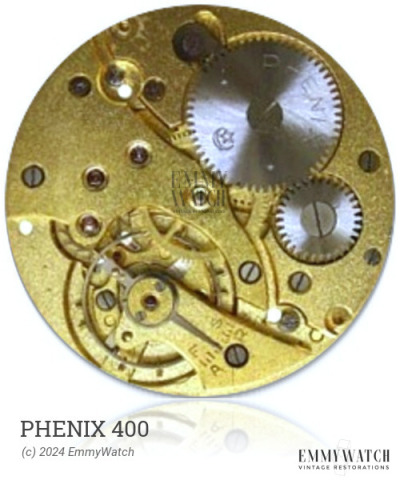

Phenix 400
Ligne: 11.5'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1955-
Diameter: 26 mm
Height: 3.5 mm
Hands: 1.40 x 0.65 / 0.20 mm
Base: A. Schild 1200
The Phenix 400 watch movement, introduced in 1955, incorporates elements from the AS 1201 movement. This manual wind movement features sub-second functionality and is equipped with Incabloc shock protection. The Phenix 400 movement has been utilized in watches since its introduction in 1955.
The Phenix 400 features the following functions:
- Incabloc Shock Protection
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 300 x 9.0 mm | GR4486 | Manual | Buy mainspring |
| 1.60 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.095 x 300 x 8.5 mm | GR4476 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
