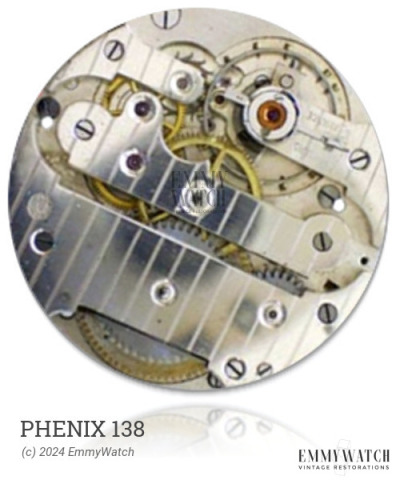

Phenix 138
Ligne: 10.5'''
Jewels: 15/17/19/21
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.7 mm
Height: 4.15 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Phenix 138 is a mechanical watch movement that belongs to a series of movements, including the 1080, 1082, 1084, 1086, 1088, 1094, 1096, 1098, 1140, 1142, 1144, 1146, 1148, 1154, 1156, 1174, 1176, 1178, 1180, and 1182. This movement features manual winding and a sweep second hand. It was commonly used during approximately 1955.
The Phenix 138 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 300 x 9.0 mm | GR4134 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
