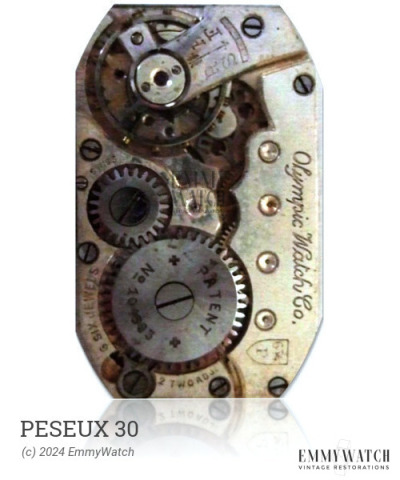

Peseux 30
Ligne: 19.5'''
Jewels: 7
Power Reserve: 18 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 44 mm
Height: 8.1 mm
Hands: 1.35 / 1.35 mm
The Peseux 30 watch movement is an open face calibre with a stop function controlled by a pillar wheel. The pendant is mounted directly on the movement. Early calibres of this movement are poorly documented and lack a distinct calibre signature. The functions of the Peseux 30 movement include a timer with intervals of 60 seconds (0.2 seconds) and 30 minutes, operated by the pillar wheel. There is also an optional timer function with intervals of 30 seconds (0.1 seconds) and 15 minutes. Furthermore, the movement offers an additional timer, stem winding capability, a sweep second hand, and a timer function. The period of the Peseux 30 movement's use is approximately around 1940.
The Peseux 30 features the following functions:
- Addition timer
- Option: 30s (0.1s), 15min
- Stem wind
- Sweep second
- Timer, 60s (0.2s), 30min, pillar wheel
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3096 | Ordinary/None | Buy staff |
| 4143 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.150 x 480 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| STAFF, FRICTION | 100/1551 | Buy part |
