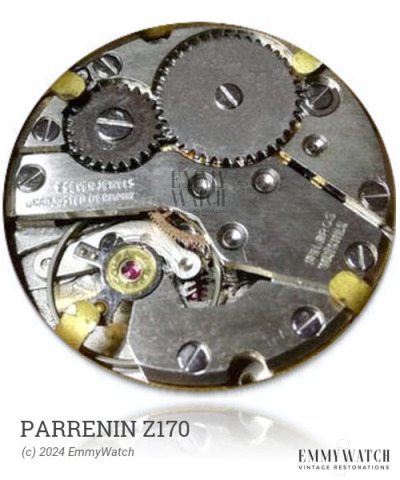

Parrenin Z170
Ligne: 11.5'''
Jewels: 17/21
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 4.0 mm
Hands: 1.30 x 0.90 x 0.21 mm
The Parrenin Z170 is a mechanical watch movement with manual wind and sweep seconds functions. It is part of a series that includes the 73, 731, and 733 movements, with the differences between them not being known. The 735 movement was commonly used around the year 1960.
The Parrenin Z170 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.120 x 340 x 10.5 mm | GR3729 | Manual | Buy mainspring |
| 1.40 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.110 x 320 x 9.5 mm | GR3699 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CANNON PINION, SS HT 2.25 | 245/327 | 5076 | Buy part |
| CROWN WHEEL | 420/844 | Buy part | |
| GIB/BOLT INCA 240X19 THICK | 400/1 | 180.19/INCA #11 | Buy part |
| JEWEL, INCA BALANCE 135X50X11 | 400/13 | 111.11/INCA #10 | Buy part |
| JEWEL, INCA UPPER CAP 120X27 | 400/7 | 121.11/INCA #5 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| LOWER INCA SETTING D230 H11 | 400/64 | 103.20.11 | Buy part |
| MAINSPRING 1.40-.11-320 9,5 | MS-510M | GR 3699 | Buy part |
| PALLET ARBOR, S/S 40-100-10 | 72S/87P | 714/AS 1007 | Buy part |
| ROLLER 180X80X36 | 82S/41R | Buy part | |
| ROLLER, INCABLOC 180X80X36 | 82S/148R | 730/AUR 18 | Buy part |
| SHOCK SPRING, LOWER 223 X 155 | 400/811 | 173.03/INC | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| STAFF, HSP 30 INCA | 100/2279 | Buy part | |
| STAFF, HSP 70 INCA | 100/759A | Buy part | |
| STEM | 200/1037F | Buy part | |
| STEM, FEMALE OA10.45 SH4.57 | 360/337 | 360/FF 73 | Buy part |
| UPPER UNIT D317 H11 | 400/208 | 100.11.317.11 | Buy part |
