Oris 702
Ligne: 11.5'''
Jewels: 8/17
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1972-1980
Diameter: 26 mm
Height: 4.6 mm
Hands: 1.50 x 1.00 x 0.25 mm

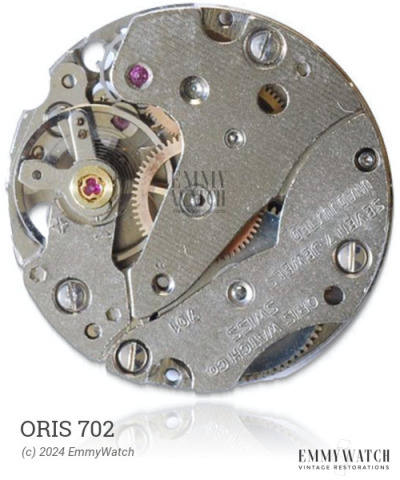

The Oris 702 watch movement is a manual wind movement with a sweep second hand. This movement was used during the period of 1972 to 1980.
The Oris 702 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.115 x 300 x 9.5 mm | GR3139 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| ESCAPE WHEEL, S/S 2520B | 032-105 | 705/1432 | Buy part |
| MAINSPRING 1.25-.115-300 9,5 | MS-3595K | GR 3136 | Buy part |
| SETTING WHEEL | 076-33 | 450/1336 | Buy part |
| STEM | 065-168 | Buy part | |
| STEM | 065-206 | 401/1392 | Buy part |
