Oris 652
Ligne: 13.5'''
Jewels: 1
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 30.46 mm
Height: 4.5 mm
Hands: 1.80 x 1.30 x 0.20 mm

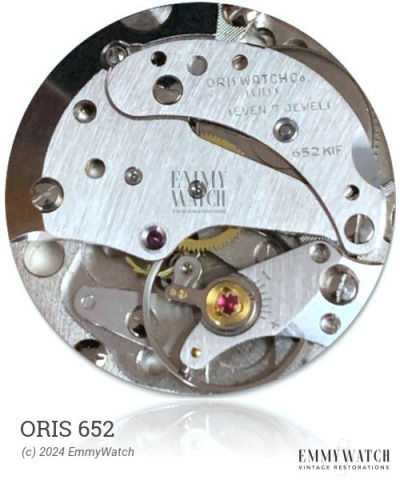

The Oris 652 is a mechanical watch movement that features a pin-lever escapement. The train and hand gear are driven by the barrel separately, which is a unique characteristic. It has a manual wind function and sweep second hand. The date function can be quickly set by reverse setting. The Oris 652 movement was commonly used around the period of 1965.
The Oris 652 features the following functions:
- Date: quickset by reverse setting
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
