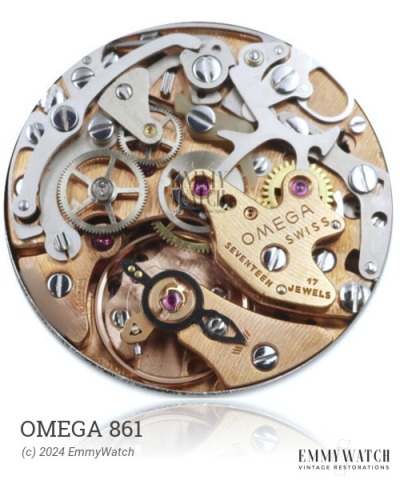

Omega 861
Ligne: 6'''
Jewels: 17/22
Lift Angle: 52°
Power Reserve: 35 hrs
Frequency: 21600 vph
Type: Manual Wind
Diameter: 13.75 mm
Height: 3.15 mm
Hands: 1.00 x 0.50 mm
Base: Felsa 22
The Omega 861 watch movement is a manual wind mechanical movement with both early fixed and later mobile stud carrier options available. While there may be differences between the Felsa 22 and 82 movements, the specific details are not known.
The Omega 861 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.060 x 160 x 5.5 mm | GR3460 | Manual | Buy mainspring |
| 1.35 x 0.060 x 160 x 5.0 mm | GR3460 | Manual | Buy mainspring |
| 1.35 x 0.060 x 145 x 5.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
