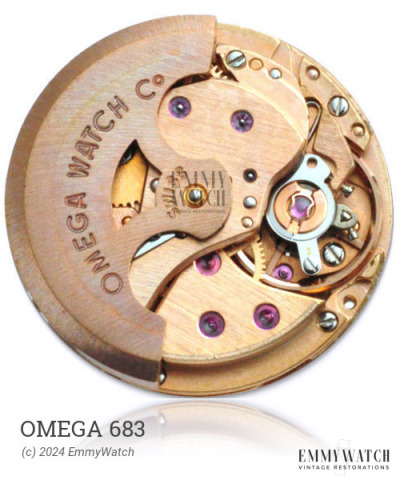

Omega 683
Ligne: 11.5'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1968-1972
Diameter: 26 mm
Height: 6.0 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Omega 683 watch movement was in use from 1968 to 1972 and offered optional plastic bushings as an alternative to dial screws. It features an automatic function, sweep second hand, day and date display, and a calendar that can be set by changing between the 20-24 hour timeframe.
The Omega 683 features the following functions:
- Automatic Winding
- Calendar
- Date: set by changing 20-24h
- Day
- Day and Date Display
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.105 x 320 x 10.0 mm | GR2936X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
