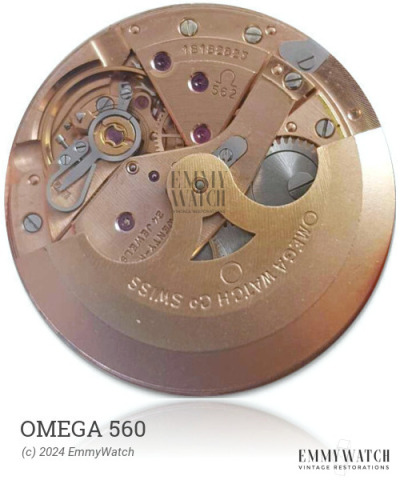

Omega 560
Ligne: 13'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 19800 vph
Type: Automatic
Period used: ~1964
Diameter: 29.5 mm
Height: 4.1 mm
Hands: 1.50 x 0.90 x 0.20 mm
Base: A. Schild 1773
The Omega 560 watch movement, specifically designed for the Ocean Star collection, shares similar technical details with the Mido 1147OC model. It features an automatic winding mechanism and a sweep seconds hand. The movement was utilized around the year 1964.
The Omega 560 features the following functions:
- Automatic Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.120 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
