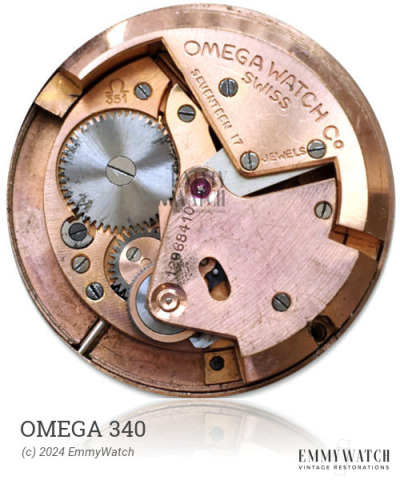

Omega 340
Ligne: 12.5'''
Jewels: 17
Lift Angle: 46°
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1948-1955
Diameter: 28.2 mm
Height: 4.8 mm
Hands: 1.32 x 0.80 / 0.15 mm
The Omega 340 watch movement is a mechanical movement that was used in watches from 1948 to 1955. It is an automatic (bumper) movement, featuring sub second and sweep seconds functions.
The Omega 340 features the following functions:
- Automatic (bumper)
- Sub Second
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3081 | Ordinary/None | Buy staff |
| 4147 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.090 x 250 x 8.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
