Omega 302
Ligne: 10.5'''
Jewels: 7/15/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.35 mm
Height: 3.5 mm
Hands: 1.40 x 0.80 / 0.22 mm
Base: ETA 926

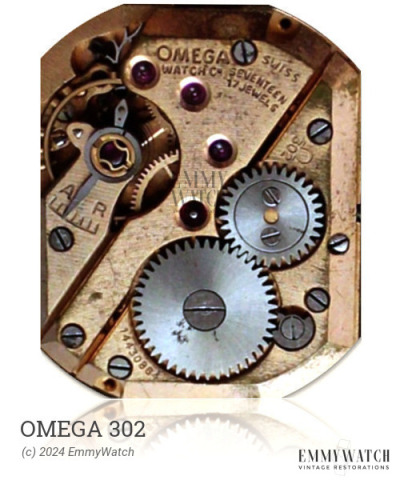

The Omega 302 watch movement is a manual wind mechanical movement with sub-second function. It shares similarities with other ETA movements such as the 902, 903, 927-929, 938, 941, and 968, possibly differing only in bridge designs. The presence of an optional Breguet hairspring and standard flat hairspring is known, but further differences between the aforementioned movements are not specified.
The Omega 302 features the following functions:
- Manual Winding
- Mechanical Movement
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 829 | Ordinary/None | Buy staff |
| 828 | Ordinary/None | Buy staff |
| 2693 | Incabloc | Buy staff |
| 885 | Incabloc | Buy staff |
| 2695 | Shock Resist | Buy staff |
| 4189 | Supershock | Buy staff |
| 737 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.55 x 0.105 x 280 x 9.0 mm | GR4390 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
