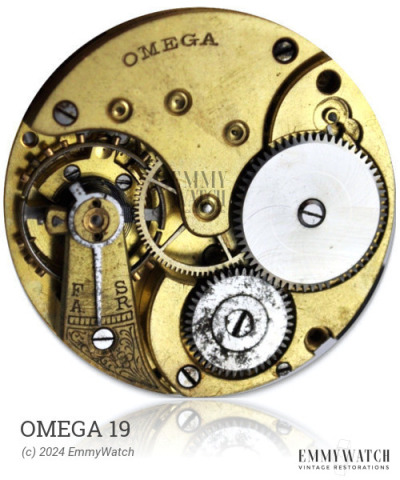

Omega 19
Ligne: 7.75 x 11'''
Jewels: 15
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Size: 17.45 x 25 mm
Height: 3.6 mm
Hands: 1.05 x 0.70 mm
The Omega 19 watch movement features a spring-mounted regulator for shock protection and modified bridge shapes compared to its predecessor, the 364 movement. It was primarily utilized in manual wind watches with a sub second function, and was in circulation around the period of 1940.
The Omega 19 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.090 x 320 x 9.0 mm | GR3500 | Manual | Buy mainspring |
| 1.30 x 0.100 x 280 x 8.5 mm | GR3252 | Manual | Buy mainspring |
| 1.30 x 0.105 x 280 x 8.5 mm | GR3267 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
