Omega 1420
Ligne: 13.5'''
Jewels: 2
Frequency: 21600 vph
Type: Quartz
Period used: 1973-1977
Diameter: 30.5 mm
Height: 7.0 mm
Hands: 1.92 x 1.40 x 0.18 mm

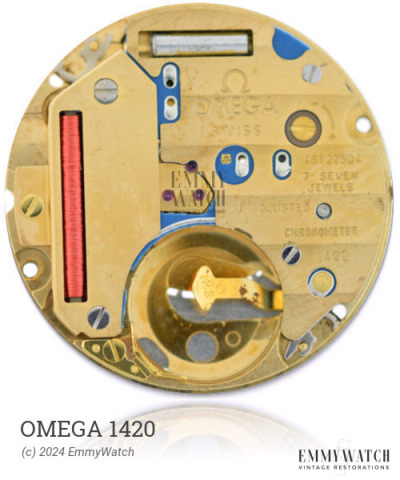

The Omega 1420 watch movement, used during the period of 1973-1977, features a pointed balance staff supported by white jewels. Its unique design incorporates a conventional balance system stabilized by a quartz controlled electronic circuit, which provides a pulse during each balance period. The movement includes functions such as a quartz controlled balance motor, sweep second hand, day adjustment of +/-24 hours, quickset date, and an electrical hack feature.
The Omega 1420 features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
