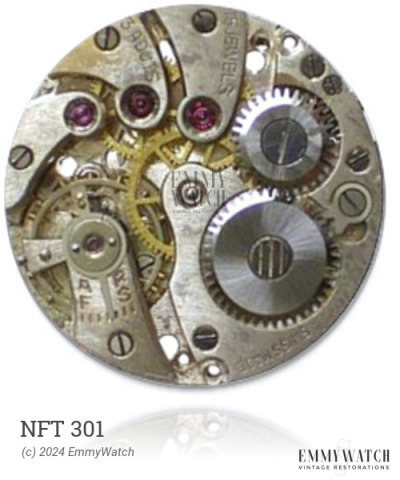

New Factory Tavennes 301
(Tavennes)
Ligne: 13'''
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1978
Diameter: 29.45 mm
Height: 5.0 mm
Hands: 1.38 x 0.90 x 0.16 / 0.21 mm
The New Factory Tavennes 301 watch movement features a pin-lever escapement. It is a manual wind movement that offers a sweep second hand and a date function, which can be set by changing the 22-24h position. The movement was commonly used around the year 1978.
The New Factory Tavennes 301 features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
