MSR X3
Ligne: 11.5'''
Jewels: 17
Frequency: 19800 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm

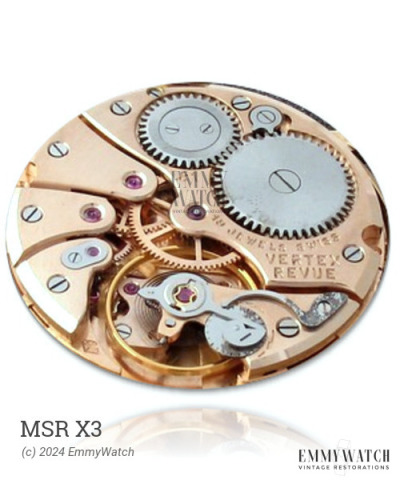

The MSR X3 watch movement is a Record design that was adopted by Longines when they acquired Record. It is unclear if other variants were also available as Wittnauer calibres. Manual-wind versions have only been observed from Wittnauer, not from Record or Lobines. This movement features sub-second hand functionality and a date function that can be set by changing from 19:30-24h. It was commonly used around the period of approximately 1960.
The MSR X3 features the following functions:
- Date: set by changing 19:30-24h
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING 1.10-.115-325 | MSN-81 | GR 2644-X | Buy part |
