MSR X1
Ligne: 11.5'''
Jewels: 17
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 4.5 mm
Hands: 1.30 x 0.90 x 0.21 mm

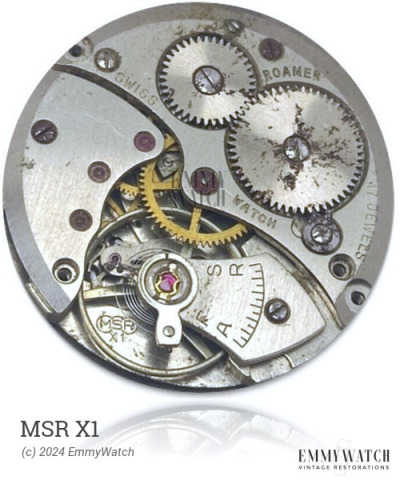

The MSR X1 watch movement, commonly identified by the signatures FHF and ST, is part of a series of movements that share similarities with models 96, 962, 963, 964, 965, and 969. Its exact differences from these models are not known. This manual wind movement features a sweep second hand and was commonly used during the period of circa 1965.
The MSR X1 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.120 x 350 x 11.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.110 x 400 x 10.5 mm | GR4519 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
