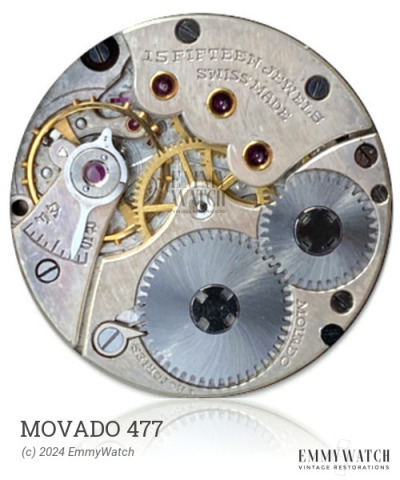

Movado 477
Ligne: 5.5 x 7'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.2 x 15.85 mm
Height: 3.5 mm
Hands: 1.00 x 0.55 mm
The Movado 477 watch movement is a manual wind movement manufactured around 1945. While its specific differences from other A. Schild movements such as the 976, 986, 990, 1057, 1079, 1246, 1273, 1406, 1467, 1482, and 1489 are not known, it shares the same general characteristics and functions as these movements.
The Movado 477 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.065 x 220 x 6.0 mm | GR3568 | Manual | Buy mainspring |
| 1.40 x 0.060 x 210 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
