Moeris 20/26T
Ligne: 11.5'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 25.6 mm
Height: 2.8 mm
Hands: 1.30 x 0.70 mm

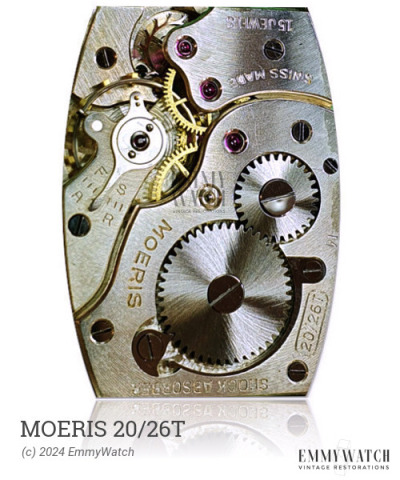

The Moeris 20/26T watch movement, manufactured around 1960, is a manual wind movement with a sub second function. It is characterized by its varying combined setting for the escapement wheel and/or mobile stud carrier. There are differences in bridge shapes between the 4200-4202 and the 4205-4207 movements, although the exact variations are not known.
The Moeris 20/26T features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 340 x 9.5 mm | GR2922 | Manual | Buy mainspring |
| 1.20 x 0.100 x 320 x 9.0 mm | GR2921 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
