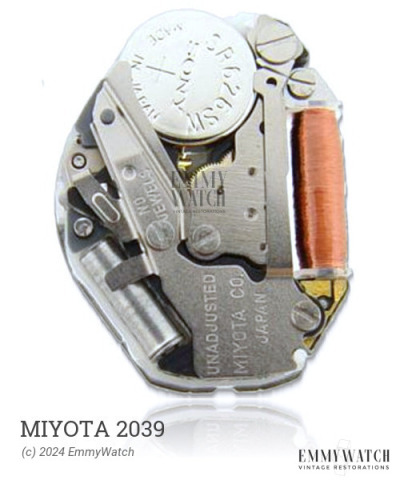

Miyota 2039
Ligne: 10.5'''
Jewels: 6
Frequency: 32768 hz
Type: Quartz
Period used: ~1990
Diameter: 23.3 mm
Height: 2.45 mm
Hands: 1.20 x 0.70 x 0.20 mm
The Miyota 2039 is a quartz-controlled stepper motor movement with an analog display. It features a sweep second hand and allows for quickset adjustment of the hour hand for time-zone changes. The movement also includes a quickset function for the date feature. It is a quartz movement that was commonly used around the period of 1990.
The Miyota 2039 features the following functions:
- Analog Display
- Date: quickset
- Quartz controlled stepper motor
- Sweep second
- Time-zone quickset of hour hand
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
