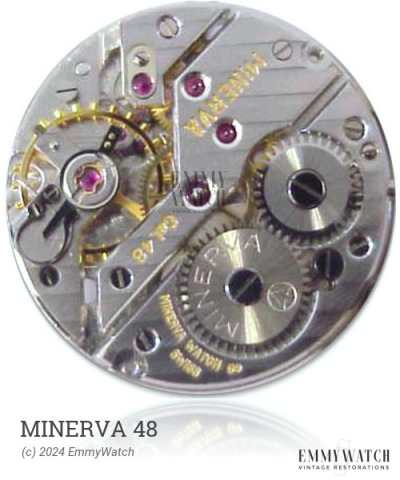

Minerva 48
Ligne: 12'''
Jewels: 15/16
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 27 mm
Height: 3.9 mm
Hands: 1.43 x 0.80 / 0.20 mm
The Minerva 48 watch movement is similar to the 320 model, with differences in the shapes of its bridges. Early samples of this movement were marked as 320 on the dial side. The movement is manual wind and includes a sub-second function.
The Minerva 48 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.120 x 340 x 10.5 mm | GR5295 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| GIB/BOLT INCA 240X19 THICK | 400/1 | 180.19/INCA #11 | Buy part |
| JEWEL, INCA BALANCE 135X50X10 | 400/12 | 111.10/INCA #9 | Buy part |
| JEWEL, INCA UPPER CAP 120X27 | 400/7 | 121.11/INCA #5 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| SCREW, INCA 18X50 | 400/2 | 150.11/INCA #14 | Buy part |
| SHOCK UNIT COMPLETE, LOWER | 400/33 | 100.20.10 | Buy part |
| UP INCA SETTING D325 H10 | 400/25 | 100.11.325.10 | Buy part |
| UPPER INCA SPRING THICK | 400/1458 | 170.13/INCA | Buy part |
