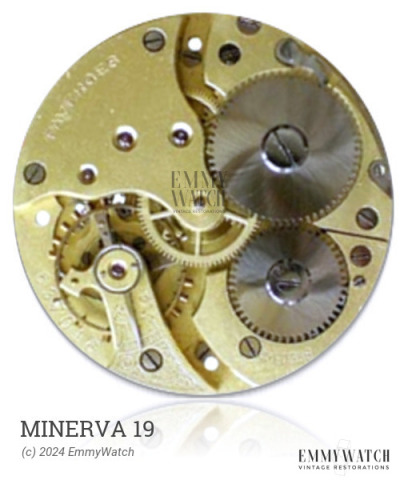

Minerva 19
Ligne: 9.75'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 22.05 mm
Height: 3.75 mm
Hands: 1.40 x 0.80 / 0.18 mm
The Minerva 19 is a manual wind mechanical watch movement with a sub second function. It was likely produced around 1940. Its distinguishing feature is the option of a sweep second hand, which is only available in versions 110-113. The specific differences between the 110-114, 117-119, 128, and 159 models are unknown, but they may denote variations in bridge shapes.
The Minerva 19 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.090 x 260 x 8.0 mm | GR4463 | Manual | Buy mainspring |
| 1.60 x 0.090 x 250 x 8.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
