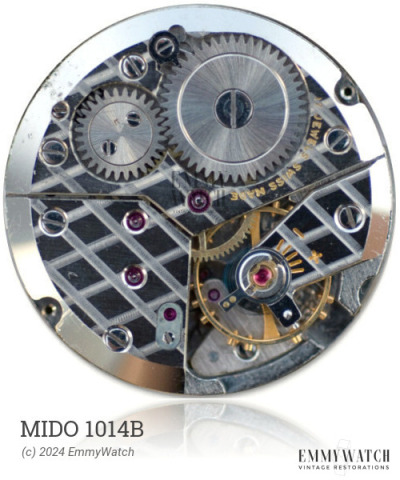

Mido 1014B
Ligne: 19'''
Jewels: 15
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Diameter: 42.9 mm
Height: 5.3 mm
Hands: 1.95 x 1.00 / 0.28 mm
The Mido 1014B watch movement, introduced around 1935, features an open face calibre and offers options such as a bimetallic screw balance and a Breguet hairspring. While minor differences can be observed in the bridge layouts between the 40, 42, 44, 46, and 48 variations, no significant variations are otherwise known. The movement enables functions such as stem winding and setting, as well as the presence of a sub-second display.
The Mido 1014B features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.30 x 0.200 x 460 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
