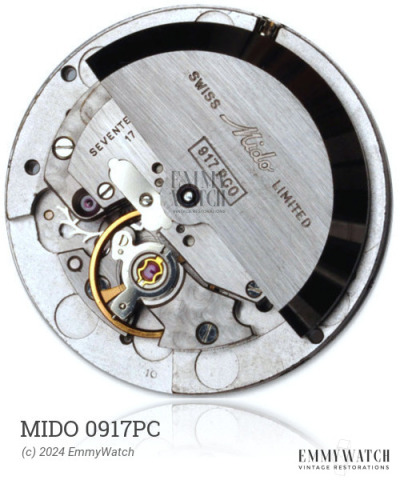

Mido 0917PC
Ligne: 12'''
Jewels: 21
Lift Angle: 53°
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1974-
Diameter: 27.4 mm
Height: 5.0 mm
Hands: 1.50 x 0.90 x 0.20 mm
The Mido 0917PC watch movement, introduced in 1974, features a sophisticated excenter self-winding mechanism with just one gear stage. It is an automatic movement with no manual wind capability. The movement includes a sweep second hand, as well as a day and date display. The day function can be quickset by repeated pushing of the crown, and is available in two languages. The date function can also be quickset.
The Mido 0917PC features the following functions:
- Automatic Winding
- Date display (quickset)
- Day display (quickset by repeated pushing the crown, 2 languages)
- No Manual Wind
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
