Mido 001137
Ligne: 11.5'''
Jewels: 17/39
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1957-
Diameter: 26 mm
Height: 6.15 mm
Hands: 1.30 x 0.80 x 0.22 mm
Base: Girard Perregaux 21.19

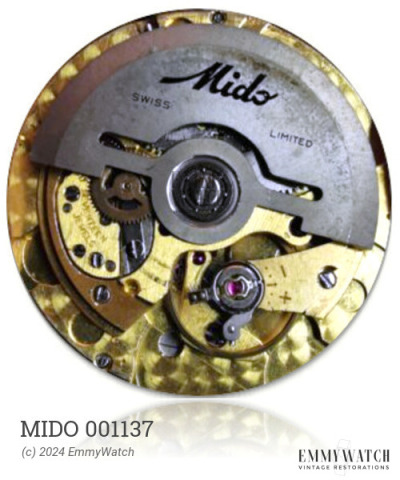

The Mido 001137 watch movement is an automatic movement with two roller freewheels and a jewel-bearing rotor. It is based on the modified Peseux 336 base movement, with the automatic module added on top. The movement features a jewel-bearing for the barrel and includes functions such as automatic winding, sweep second, and date adjustment within a range of +/- 24 hours. The Mido 001137 movement was first used in watches starting from 1957.
The Mido 001137 features the following functions:
- Automatic Winding
- Date: set by +/-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.120 x 270 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
