Mauthe 1003
Ligne: 12.75'''
Jewels: 15
Power Reserve: 49 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1955-1957
Diameter: 29 mm
Height: 4.0 mm
Hands: 1.52 x 0.82 / 0.21 mm

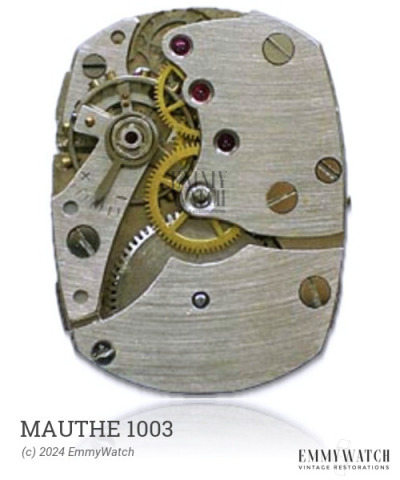

The Mauthe 1003 watch movement is a manual wind mechanical movement that was in use from 1955 to 1957. It is similar to the 102 movement, but it incorporates the Hercules Shockproof-device instead of the regular Shockproof mechanism. The 103 movement features a sub second function and is equipped with the HPP-Hercules system for enhanced shock protection.
The Mauthe 1003 features the following functions:
- Manual Winding
- Shock Protection
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
