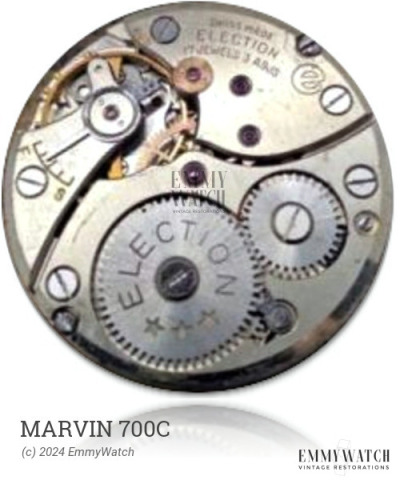

Return To ShopThe Marvin 700C watch movement is a manually wound mechanical movement that includes a sweep second function. It is closely related to the 23ZN movement, with only minor differences. The 23ZS movement was primarily used in watches produced around 1957.
The Marvin 700C features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.50 x 0.090 x 360 x 10.0 mm | GR4104T | T | Buy mainspring |
1.50 x 0.095 x 340 x 9.0 mm | T | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
---|---|---|---|
See More |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
CANNON PINION, SS HT 2.00 | 245/LON 23ZS 2.00 | Buy part | |
CANNON PINION, SS HT 2.30 | 245/LON 23ZS 2.30 | Buy part | |
CENTER WHEEL | 206/LON 23ZS | 205/LON 23ZS | Buy part |
GIB/BOLT INCA 240X19 THICK | 400/1 | 180.19/INCA #11 | Buy part |
HOUR WHEEL | 250/LON 23ZS | Buy part | |
JEWEL, INCA BALANCE 135X50X10 | 400/12 | 111.10/INCA #9 | Buy part |
JEWEL, INCA UPPER CAP 120X27 | 400/7 | 121.11/INCA #5 | Buy part |
JEWEL, INCABLOC CAP | 122.41/INCA | Buy part | |
JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
JEWEL, UPPER INCA CAP | 121.41/INCA | Buy part | |
MAINSPRING 1.50-.09-360 10 | MSS-WL12 | GR 4104-T | Buy part |
SCREW, INCA 18X50 | 400/2 | 150.11/INCA #14 | Buy part |
SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
SHOCK UNIT COMPLETE, LOWER | 400/33 | 100.20.10 | Buy part |
SHOCK UNIT, UPPER | 400/21 | 100.11.300.10 | Buy part |
STAFF, NON SHOCK | 100/1391 | Buy part | |
STEM, SPLIT | 404/LON 23Z | 404/LON 23Z | Buy part |
STEM, TAP 10 | 200/583F | 200/583F | Buy part |
SWEEP SECOND PINION | 275/LON 23ZS | 275/LON 23ZS | Buy part |
THIRD WHEEL | 210/LON 23ZS | Buy part |
