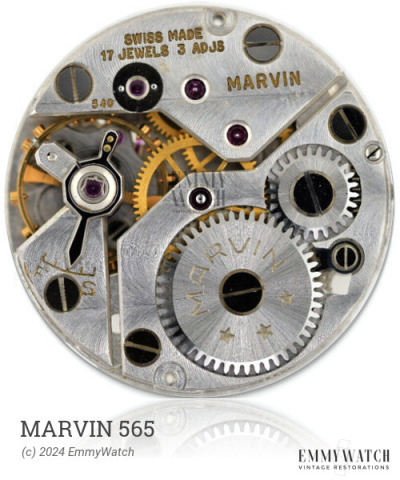

Marvin 565
Ligne: 5.5 x 7'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.2 x 15.85 mm
Height: 3.5 mm
Hands: 1.00 x 0.55 mm
The Marvin 565 is a mechanical watch movement with manual winding functionality. It was likely produced around 1945. Differences between this movement and other A. Schild movements, such as the 976, 986, 990, 1022, 1057, 1079, 1246, 1406, 1467, 1482, and 1489, are not known.
The Marvin 565 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.065 x 220 x 6.0 mm | GR3568 | Manual | Buy mainspring |
| 1.40 x 0.060 x 210 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
